NOTE (before buying):
Our products are used together, if you only buy a self-generating switch or a special receiver, it will be unusable, But for the convenience of customers who need to purchase multiple receivers or self-generating panels, we will set up a self-generating panel option and a receiver option for you to choose, So before buying, please confirm what you choose, thank you!!!

What is a self-generating switch?
The working principle of the wireless self-generating switch is to use energy harvesting technology to convert the micro kinetic energy generated by pressing the switch into electrical energy to form the energy supply for signal transmission. At the same time, it uses RF433 radio frequency technology to realize the wireless control of the switch to lamps and other equipment. Its working mode is:

1. Finger pressing generates kinetic energy;

2. The internal power generation module collects kinetic energy;

3. Kinetic energy is converted into electrical energy;

4. The communication module sends out a signal, and the wireless receiver controls the on-off of the device according to the received signal.

Why choose this product?
1. Free of wiring, free of chiseling walls, easy to install: it can be placed arbitrarily or directly glued to glass, marble, tile, wood and other surfaces, eliminating the need to plan the switch position before decoration and pre-embed the bottom of the switch for traditional switches Boxes, wall chiseling, pre-embedded PVC pipes, cable penetration and other operations save time, effort and money;

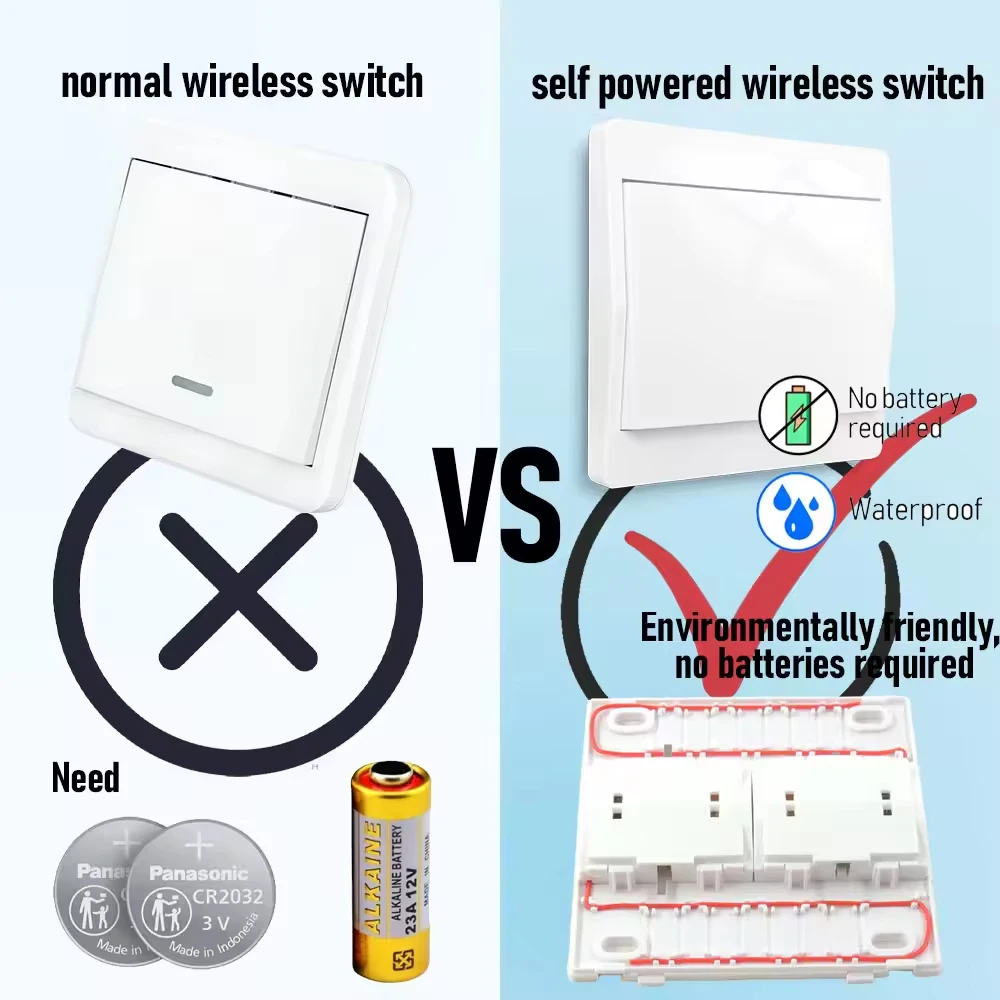

2. No need for batteries: energy saving and environmental protection, as long as the mechanical properties are maintained, it can be used all the time;

3. You can set one control and multiple modes, or you can control one more, which can replace the ordinary traditional double control switch and change the placement point at will.

Product Features:
Note:Switching cycles -More than 100,000 times
1.433Mhz RF wireless self powered lights switch.You can remotely turn ON/OFF Light or other machine connect with the relay receiver through the wireless wall switch.Stable and reliable performance with high reception sensitivity (> – 97dBm). Radio frequency signal transmission.Strong signal can pass walls, floors, doors,board and so on.It can be controlled within 100 meters distance in open area.

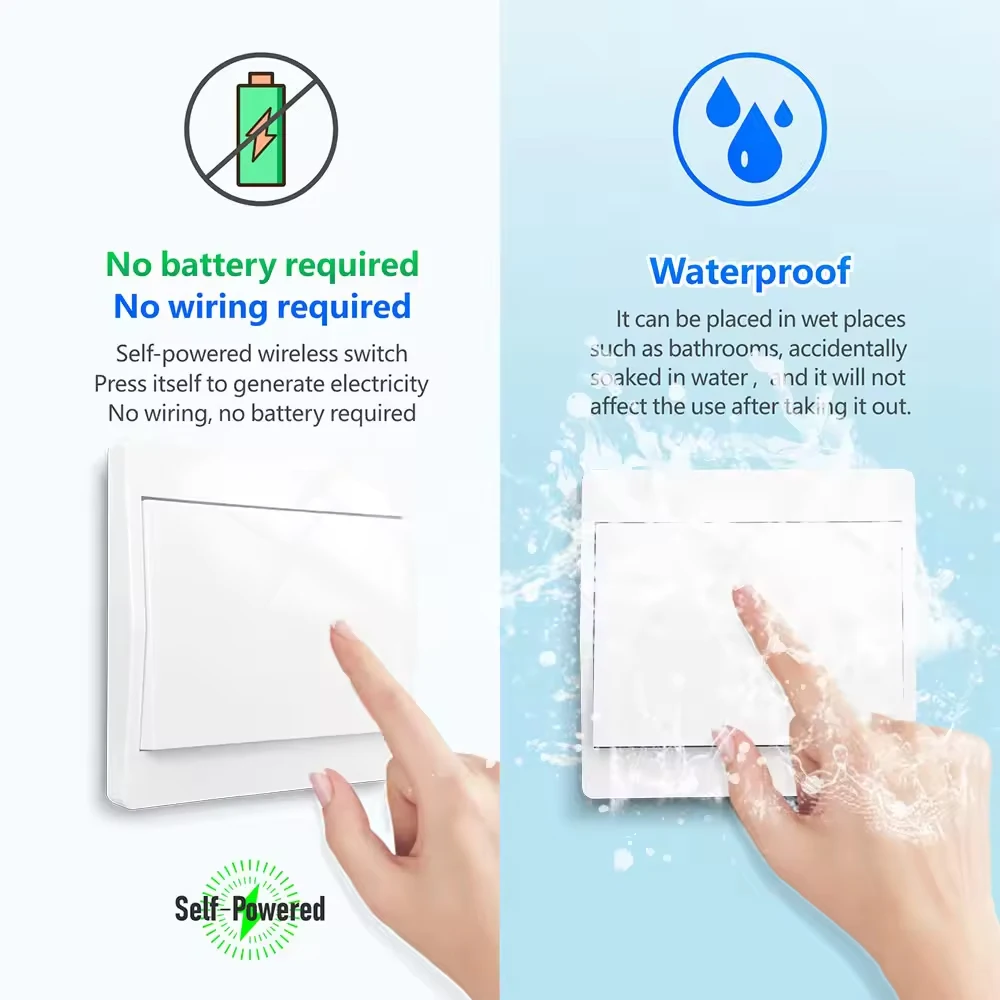

2.The wireless self-generating wall switch has ip44-level waterproof capability, and there is no problem in using it in wet environments such as bathrooms. At the same time, because the switch can be used without batteries, it will be more environmentally friendly.

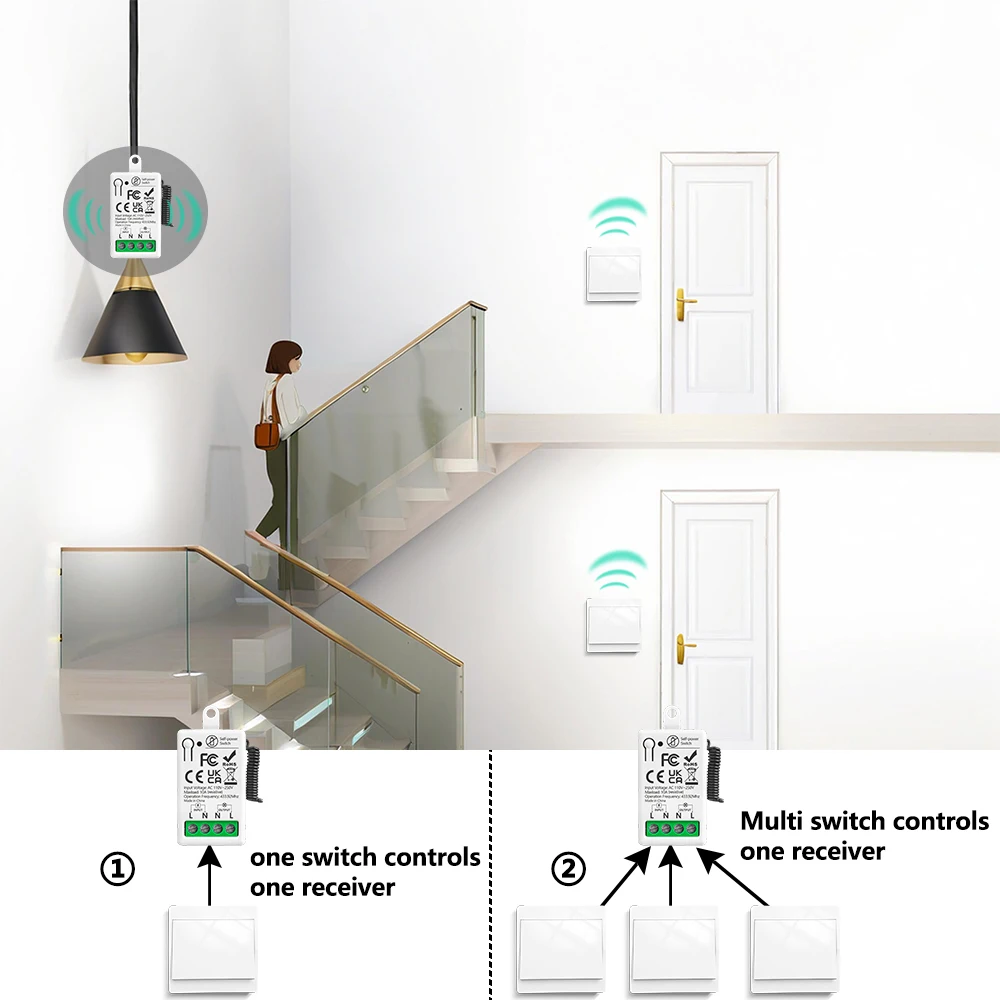

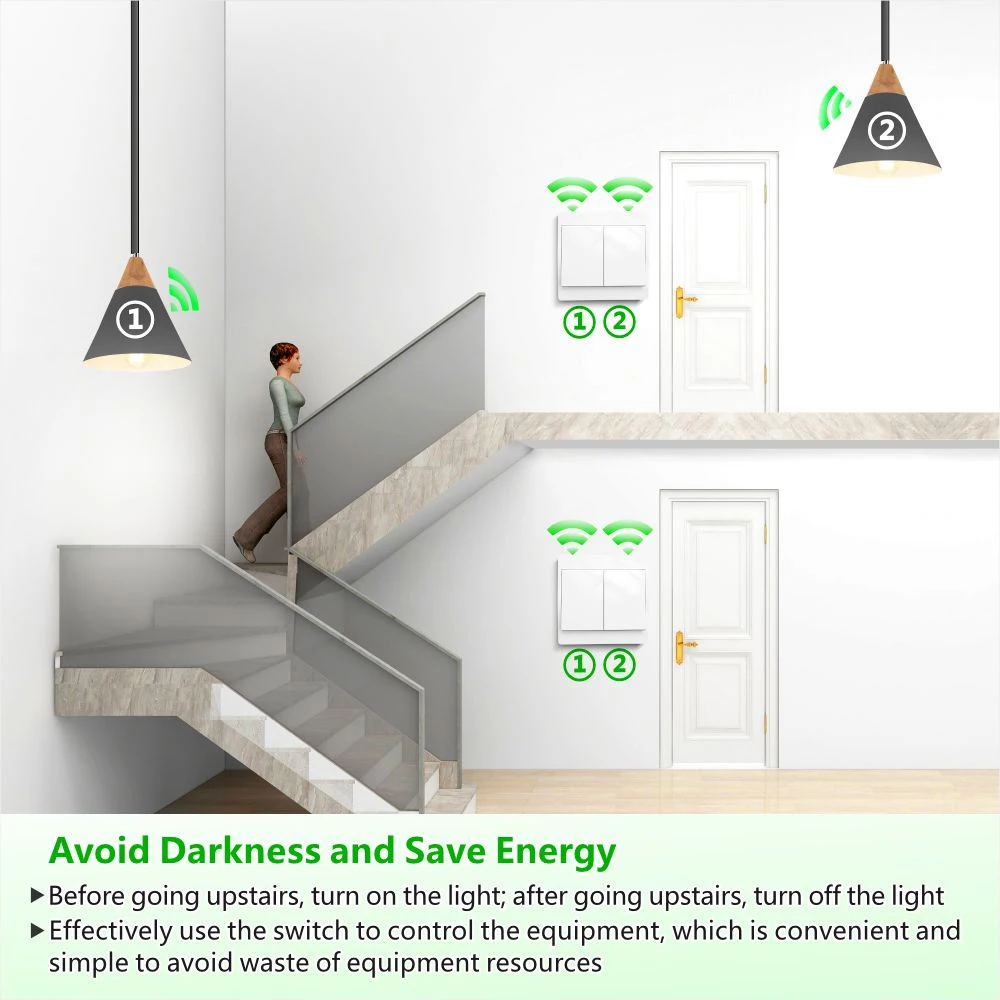

3.You can set one wireless kinetic energy switch to control multiple (≤5) receivers, or you can set multiple (≤5) wireless kinetic energy switches to control one receiver.For example, if you have a light placed in the stairs on the first and second floors, and you need to turn on the light when you go up and down the stairs, you can use two wireless kinetic energy switches to control a receiver.

4.Simple connection, can be used with many different devices.There are also many ways to install the product, which is also very simple.

5.The wireless kinetic energy switch can be pasted in any position at will (pay attention to avoid the position with magnetic field interference, which will affect the signal transmitted by the switch), and can even reach a receiving distance of 100m in an open place.

▶The switch does not require batteries and has waterproof functionality.

▶The receiving range of the receiver and the transmitting distance of the wall switch are both far enough: Pull out the antenna of the receiver, and the receiving range is up to 100 m; the transmitting distance of the wall switch is up to 50m in open space(theoretically).

Product wiring
